UNCOMPROMISING HYDRAULIC POWER. ABSOLUTE BOLTING CONTROL
Engineered from aerospace-grade Aluminum-Titanium alloy with a maximum operating pressure of 700 Bar (10000 PSI). The Boltorq IBT Square Drive series delivers precision torque ranging from 112 Nm up to 72,000 Nm, outperforming legacy competitors in wind energy, oil & gas, and heavy infrastructure maintenance.
BOLTORQ 07IBT SQUARE DRIVE HYDRAULIC WRENCH
Ultralight hydraulic torque tool designed for tight access spaces and smaller industrial fastener maintenance.
TORQUE RANGEBOLTORQ 1IBT SQUARE DRIVE HYDRAULIC WRENCH
Engineered for general plant maintenance and medium-duty flange tightening with rapid quick-push drive reversal.

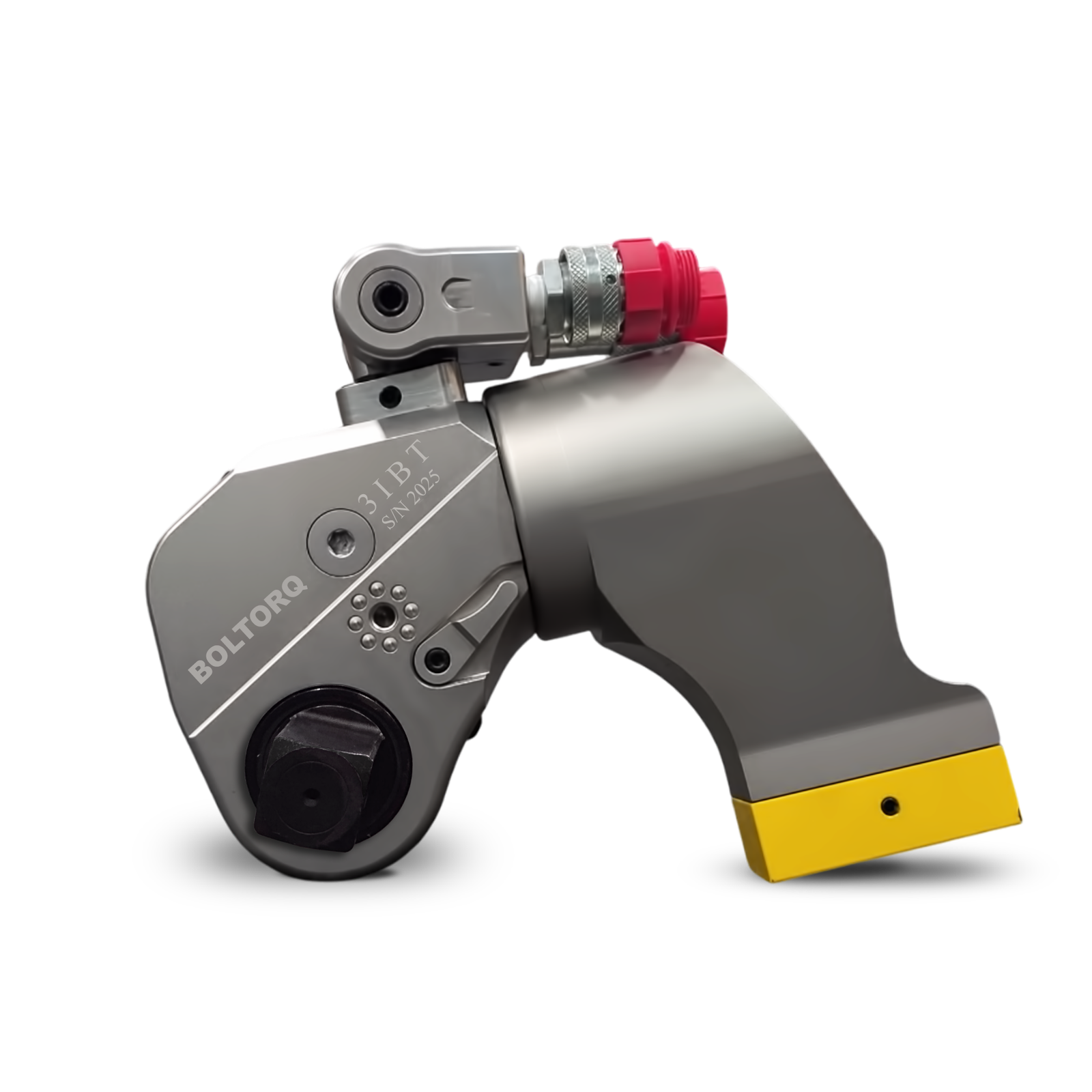

BOLTORQ 3IBT SQUARE DRIVE HYDRAULIC WRENCH
Trusted across wind turbine tower sections and heavy mechanical maintenance. Built for durability and +-3% repeatable accuracy.
BOLTORQ 5IBT HIGH-CAPACITY HYDRAULIC WRENCH
The definitive solution for refinery turnarounds, power plant overhauls, and heavy structural bolting.
BOLTORQ 8IBT SQUARE DRIVE HYDRAULIC TORQUE WRENCH
Built for demanding civil engineering, mining machinery overhaul, and heavy turbine maintenance where extreme force is non-negotiable.
BOLTORQ 10IBT HEAVY-DUTY HYDRAULIC WRENCH
Engineered for nuclear plant component assembly, bridge construction, and large-scale petrochemical flange management.
BOLTORQ 20IBT ULTRA-CAPACITY HYDRAULIC WRENCH
High-capacity flagship tool designed for offshore platform fabrication, heavy mining shovels, and massive structural anchors.
BOLTORQ 25IBT HIGH-TORQUE HYDRAULIC WRENCH
Engineered specifically for massive reactor vessel head bolting, hydroelectric turbine assembly, and heavy industrial shipyard manufacturing.
bOLTORQ 35IBT EXTREME-DUTY HYDRAULIC WRENCH
A monumental power tool built for specialized heavy engineering, critical defense applications, and immense structural joints.
BOLTORQ 50IBT MAXIMUM-CAPACITY HYDRAULIC WRENCH
Boltorq’s apex square drive hydraulic wrench. Delivering up to 72,000 Nm of unstoppable force for the heaviest industrial operations worldwide.
SQUARE DRIVE SERIES
PRECISION ENGINEERED.
Every Boltorq square drive hydraulic torque wrench is engineered for controlled, repeatable bolt tightening—combining high torque output, compact construction, and reliable square-drive operation. Built for demanding industrial applications, it delivers precise torque where joint integrity matters most.
| Technical Parameter | 07IBT | 1IBT | 3IBT | 5IBT | 10IBT / 20IBT | 35IBT / 50IBT |
| TORQUE RANGE (Nm) | 112 – 1,120 | 183 – 1,837 | 300 – 3,000 | 752 – 7,528 | 3,472 – 34,725 | 7,200 – 72,000 |
| SQUARE DRIVE | 3/4 Inch | 3/4 Inch | 1 Inch | 1-1/2 Inch | 1-1/2″ to 2-1/2″ | 2-1/2 Inch |
| BOLT SIZE (Metric) | M14 – M30 | M16 – M36 | M20 – M42 | M27 – M56 | M30 – M72 | M36 – M100+ |
| WORKING PRESSURE | 700 Bar (10000 PSI) | 700 Bar | 700 Bar | 700 Bar | 700 Bar | 700 Bar |
| BODY MATERIAL | Al-Ti Alloy | Al-Ti Alloy | Al-Ti Alloy | Al-Ti Alloy | High-Strength Steel | High-Strength Steel |
BUILT FOR ZERO-SLIP INDUSTRIAL BOLTING.
Boltorq’s IBT Series square drive hydraulic torque wrenches incorporate advanced engineering attributes designed to eliminate tool lock-up and extend operational lifespan under punishing field conditions:
Quick-Push Drive Reversal
Easily switch between tightening and loosening modes via a simple push-through square drive mechanism.
Fine Ratchet & Multi-Tooth Pawl
Ensures superior gear engagement up to 32°, preventing slippage during high-pressure cycles.
Side Load-Free Piston Movement
Balanced drive rods eliminate internal side-loading, protecting seals and cylinder bores from premature wear.
360° x 180° Swivel Manifold
Leak-proof multi-directional hydraulic couplers allow effortless hose positioning in cramped plant environments.
TRUSTED ACROSS
GLOBAL ENERGY & HEAVY INDUSTRIES.
Wind Energy Generation
Precision torquing of tower base flange bolts, nacelle yaw drives, and gearbox pillow blocks.
Oil, Gas & Petrochemical Refineries
High-pressure joint management during turnaround shutdowns and heat exchanger maintenance.
Heavy Structural Engineering
Critical turbine casing bolting and reactor coolant pump flange servicing.
FREQUENTLY ASKED QUESTIONS ABOUT
IBT HYDRAULIC TORQUE WRENCHES
What hydraulic power pack is required to operate the Boltorq IBT series?
The IBT series operates efficiently on standard 700 Bar (10000 PSI) electric or pneumatic hydraulic pumps (such as the Boltorq LP3 series) equipped with twin-line high-pressure hoses.
How is torque accuracy maintained across different models?
Every IBT wrench maintains a certified calibration accuracy of +-3% and comes packaged with a laser-engraved conversion chart (Nm & Ft-Lbs) and an individual calibration certificate.
Where are Boltorq IBT wrenches manufactured?
All Boltorq tools are engineered, vacuum-heat-treated, and manufactured at our advanced facility in Jamnagar, Gujarat, India, ensuring seamless global export availability.
What structural alloys are used in the construction of Boltorq IBT square drive wrenches?
Models from 07IBT to 10IBT utilize aerospace-grade Aluminum-Titanium (Al-Ti) alloy to minimize operator fatigue while maintaining extreme structural rigidity. High-capacity units (20IBT to 50IBT) are forged from high-strength alloy steel to handle extreme torsional stress up to 72,000 Nm.
How does the side load-free piston design protect internal cylinder seals?
Balanced internal drive rods eliminate side-load deflection during piston retraction and extension, preventing premature wear on internal cylinder bores and high-pressure dynamic seals.
What square drive sizes and metric bolt capacities are supported across the IBT range?
Square drives range from 3/4 inch (07IBT/1IBT) through 1 inch (3IBT), 1-1/2 inch (5IBT to 10IBT), up to 2-1/2 inch (20IBT to 50IBT), supporting fastener sizes from M14 up to M125+.
How does the 360° x 180° swivel manifold assist operators in restricted spaces?
The leak-proof multi-directional hydraulic swivel couplers allow flexible hose routing and rotation in tight turbine nacelles or congested refinery piping racks without kinking or flow restriction.
