Hydraulic Torque Wrench Pumps
Hydraulic Equipement
Hydraulic Torque Wrench Pumps
BOLTORQ’s Hydraulic Torque Wrench Pumps provide reliable power for
hydraulic wrenches, ensuring efficient and precise torque application in demanding environments.
Our range of Hydraulic Torque Wrench Pumps is designed to meet diverse industrial needs, providing reliable and precise torque application for a variety of heavy-duty tasks. Each model in our lineup is engineered with advanced features to ensure optimal performance and efficiency in demanding environments.
The LP3 Series Electric Pump and LP3-N Series Pneumatic Pump are built for versatility and efficiency. The LP3 Series Electric Pump is known for its compact design and automatic three-stage flow system, which ensures smooth and precise torque application. It is ideal for environments where electrical power is available. On the other hand, the LP3-N Series Pneumatic Pump utilizes a pneumatic motor to deliver consistent power and is suited for applications where air pressure is preferred. Both models can support simultaneous operation of one or two wrenches, making them suitable for a range of tasks.
Hydraulic Equipement

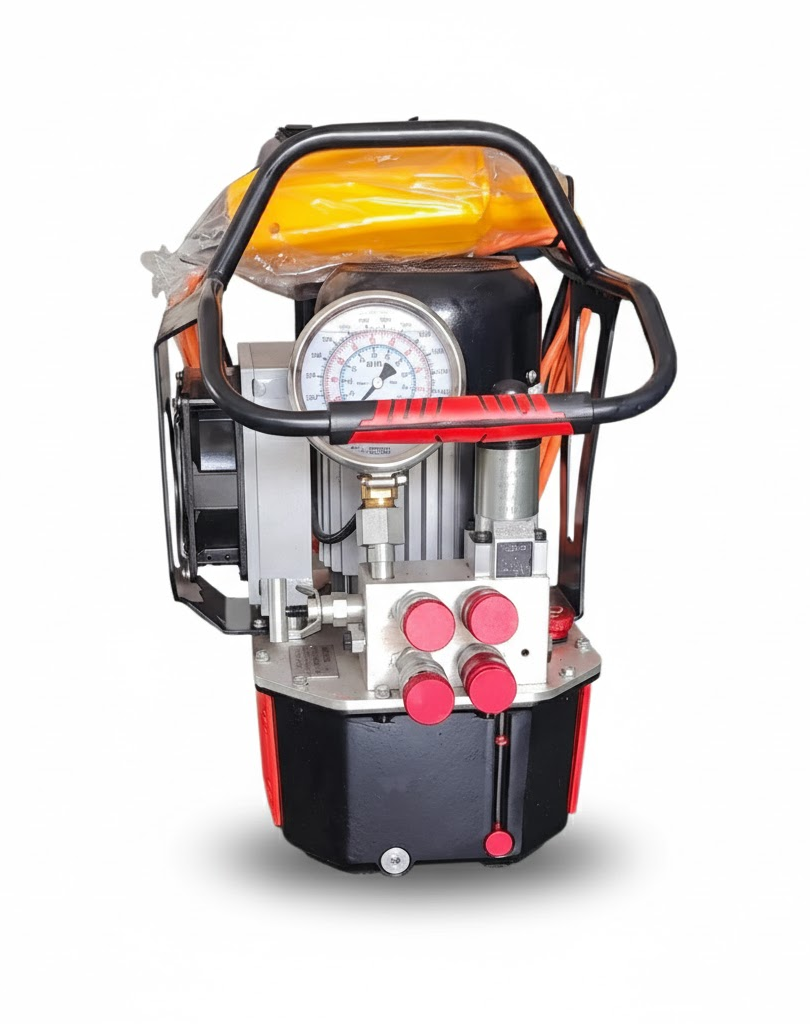

LP3 Series - Electric Pump
BOLTORQ’s LP3 Series Electric Pump delivers reliable power for
hydraulic torque wrenches, with three-stage flow and continuous 24-hour operation.
Features & Specifications
BOLTORQ’s Hydraulic Torque Wrench Pumps are designed for maximum efficiency with a compact, automatic three-stage flow system. They are versatile, capable of operating one or two wrenches simultaneously. The aluminum oil tank features an oil gauge and thermometer for easy monitoring, and the pump includes a Φ100 high-pressure gauge. With a working pressure range of 40-700 bar and an efficient radiator, the pump can operate continuously for 24 hours. The motor can be adapted to different voltages, and using a manifold, it can operate up to four wrenches simultaneously.
- Compact automatic three stage flow, most efficiency.
- Applicable on both one or two Wrenches. simultaneously.
- Aluminum oil tank with oil gauge and thermometer.
- Have Φ100 high pressure gauge.
- Working pressure: 40-700 bar.
- With efficient radiator, the pump can work 24 hours continuously.
- The motor can be changed according to the different voltage.
- You can use manifold to operate 4 Wrenches simultaneously.
Technical Data
|
Model
|
LP3-2
|
LP3-4
|
|---|---|---|
Hydraulic Equipement

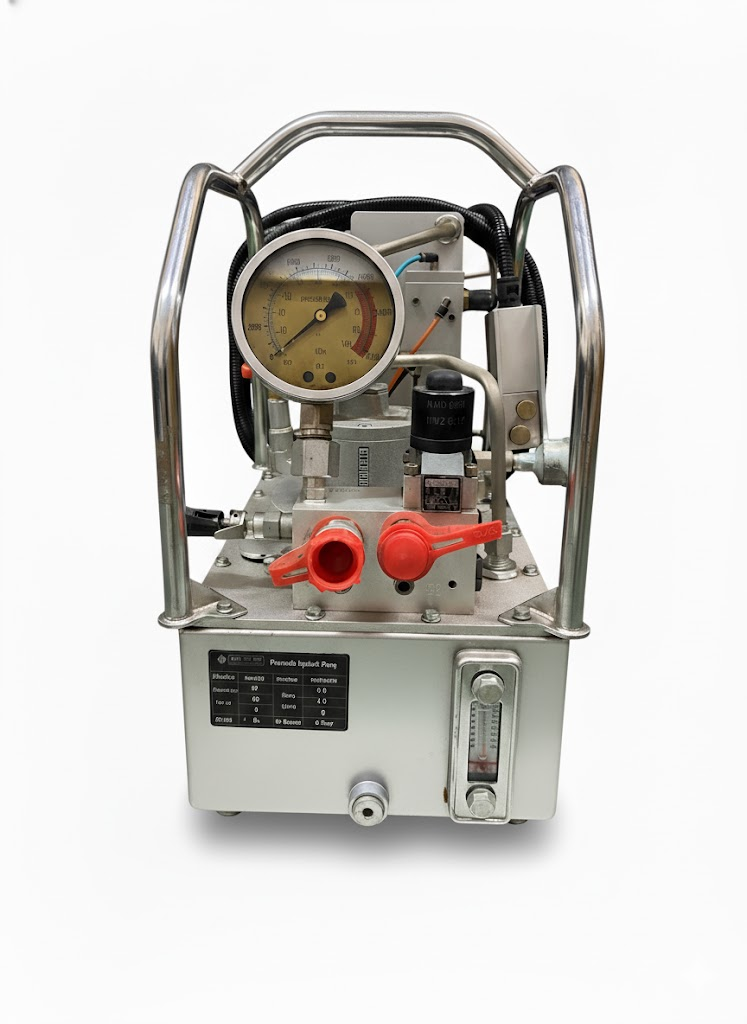

LP3-N Series - Pneumatic Pump
BOLTORQ’s LP3-N Series Pneumatic Pump offers efficient,
continuous operation with three-stage flow, adjustable pressure, and support for multiple tools.
Features & Specifications
LP3-N Series Pneumatic Pump by BOLTORQ is a highly efficient hydraulic torque wrench pump featuring a compact, automatic three-stage flow system. This pump is designed for versatility and can be adapted to drive two or four tools simultaneously by replacing the single valve block with the FP4 component. It operates with an air drive, making it suitable for continuous operation. The pump is supported by a durable steel frame and includes a 4” diameter gauge and an aluminum oil tank with an oil level indicator. It offers variable pressure adjustment between 70-700 bar, ensuring precise and reliable performance for demanding applications.
- Compact automatic three stage flow, most efficiency.
- The Single valve block can be replace by component FP4, there by allowing 2 or 4 Tools to be driven simultaneously.
- Three stage with air drive.
- Supporting continuous operation with steel frame.
- 4” diameter gauge, aluminium oil tank with oil level indicator
- Variable pressure adjustment between 70-700 bar
- Designed for continuous operation
Technical Data
|
Model
|
LP3-N2
|
LP3-N4
|
|---|---|---|
