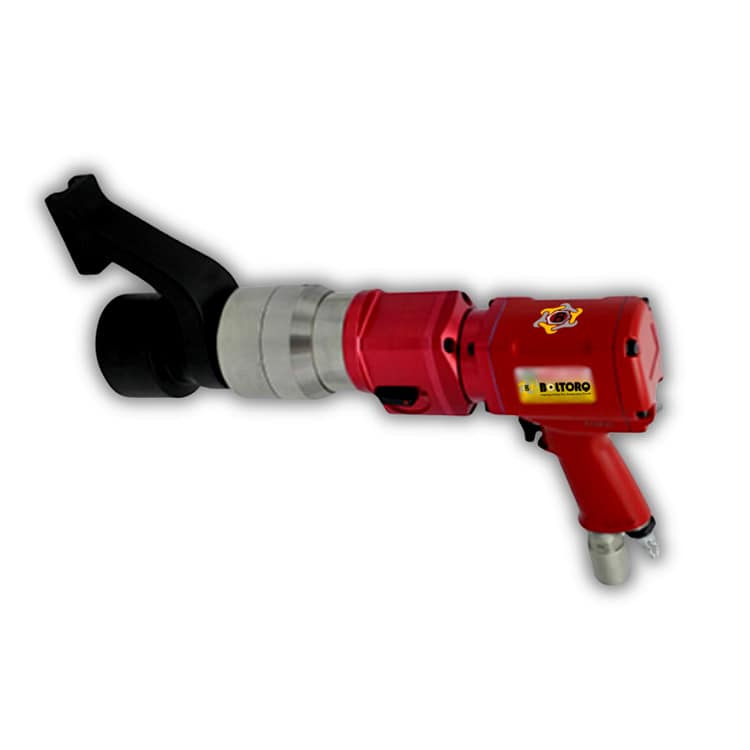

Straight Type - Pneumatic Torque Wrench
The Straight Type Pneumatic Torque Wrench by BOLTORQ offers precise,
high-torque tightening, enhancing safety and efficiency in industrial applications.
Features & Specifications
BOLTORQ’s BTP SERIES pneumatic torque wrench (digital type), Powered by the reliable INGERSOL RAND (IR) air motor. It is having single chip intelligent torque control system with LCD display, light and compact design. It is having HEAVY DUTY gear box for longer operational life.
Torque output is consistently repeatable, easy and safe handling, vibration-free and low noise technology.
- 6 Bar compressed air, air consumption under max. power : 600L/min
- Powerful and low noise, less than 80Dba under max power
- Set and control torque by adjusting the pressure on air register.
- Accuracy:±5%，repeatability: ±1%.
- Optional digital air register, torque precision:±3%, repeatability: ±1%.
- Compact planet design, small size, higher torque/weight ratio.
- 4-way type of power control system, large-span torque.
- 7-vane type high performance air motor, high efficiency, no impact torque can be continually output
- Design of reverse pressure-bias motor provide the max. power and torque in reversing mode, satisfying the request of higher torque when loosing bolts
- Positive/reverse button by single hand, switch valve of TOUCH type
- Excellent performance of continuous running can meet high workload.

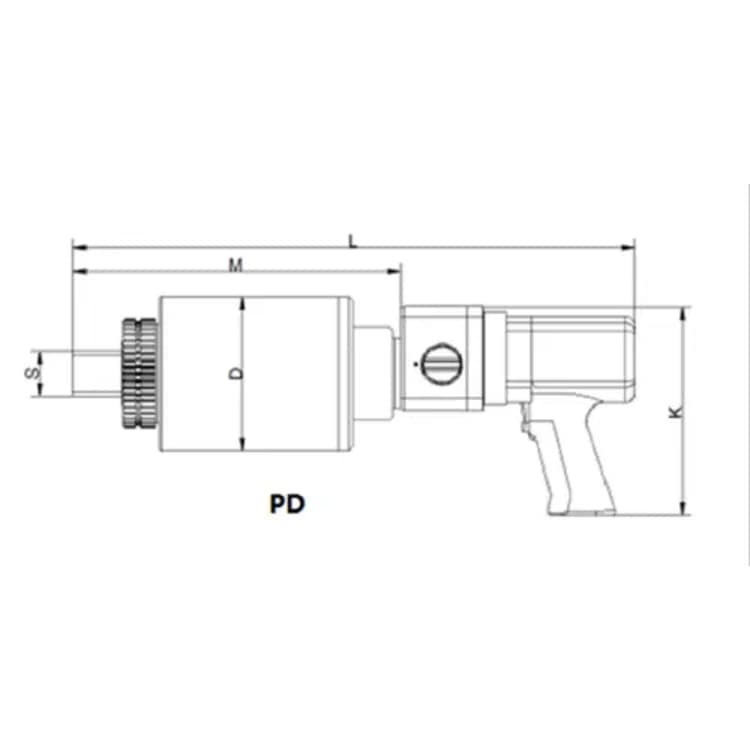

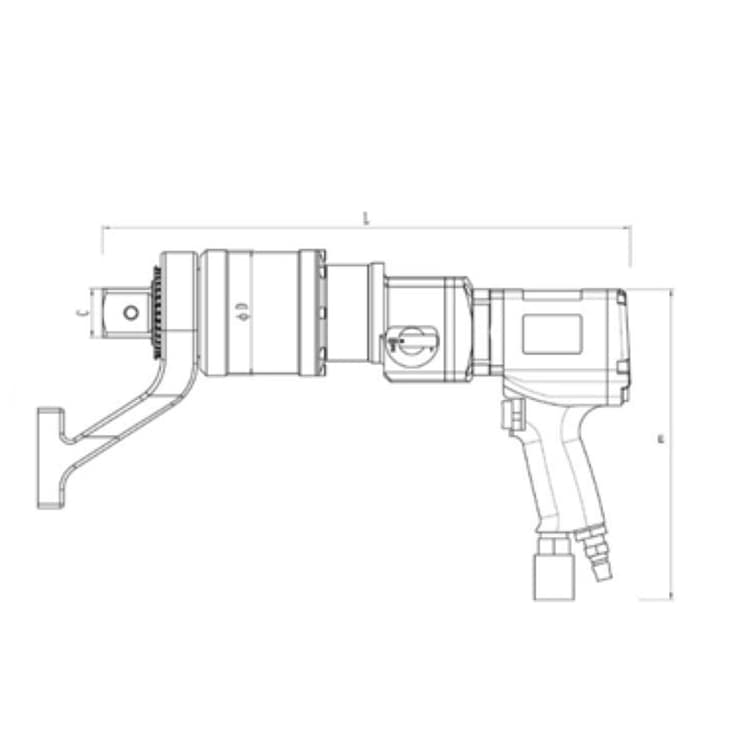

Technical Data
